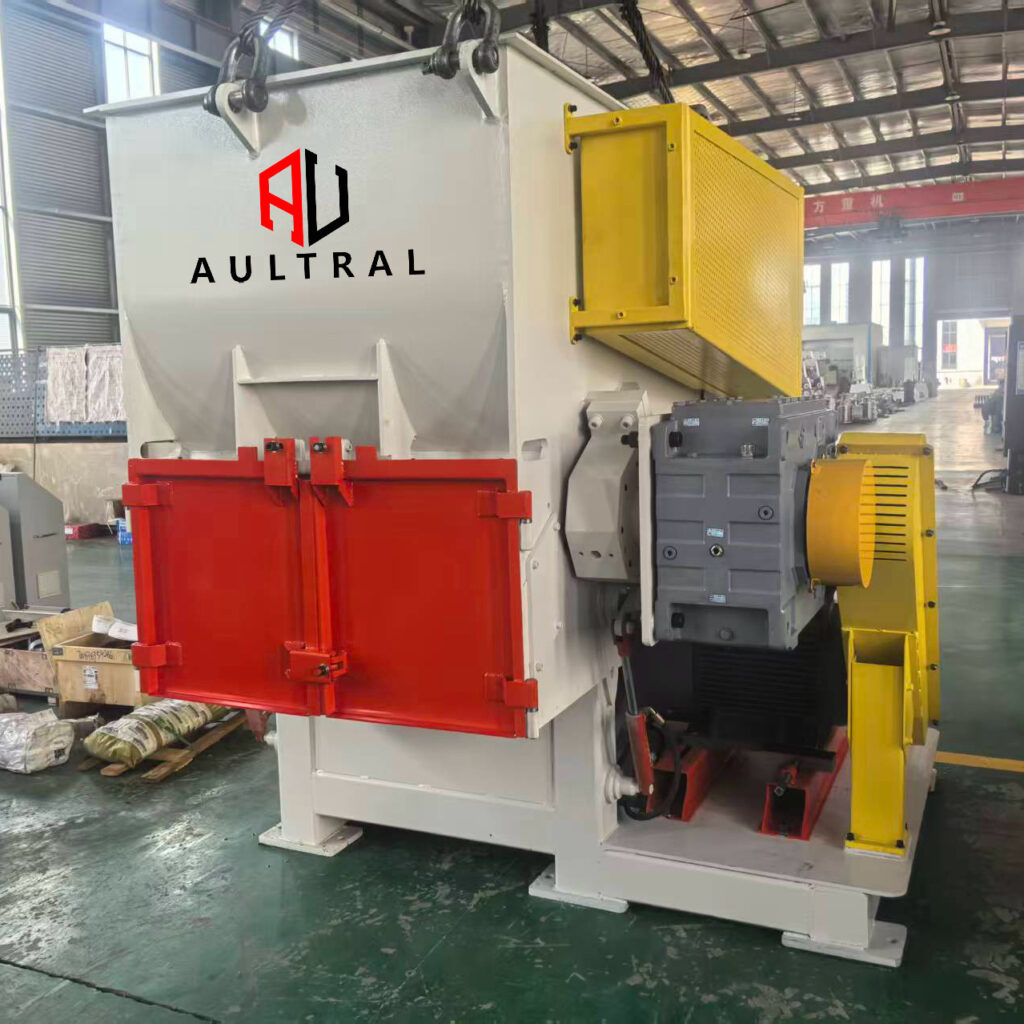

A single shaft shredder machine is a versatile and high-efficiency industrial machine designed for shredding a wide range of materials, including plastics, wood, electronic waste, rubber, and scrap metal. Its robust construction, simple operation, and adjustable output make it an ideal choice for recycling plants, manufacturing facilities, and industrial waste management operations.
Key Features of the Single Shaft Shredder Machine
-
High-Efficiency Shredding: The single shaft design ensures smooth material feeding and consistent particle size output. It is suitable for processing materials of varying hardness and thickness.
-
Robust Construction: Made of heavy-duty steel with wear-resistant blades, the machine guarantees long service life even under continuous operation.
-
Adjustable Output Size: The machine allows operators to control the particle size through a selection of screen sizes, making it adaptable to different recycling or production requirements.
-
Powerful Motor System: Equipped with a high-torque main motor and hydraulic system, it can handle large loads efficiently while minimizing energy consumption.
-
User-Friendly Operation: Features such as emergency stop, overload protection, and simple control panel ensure safe and easy operation.
-

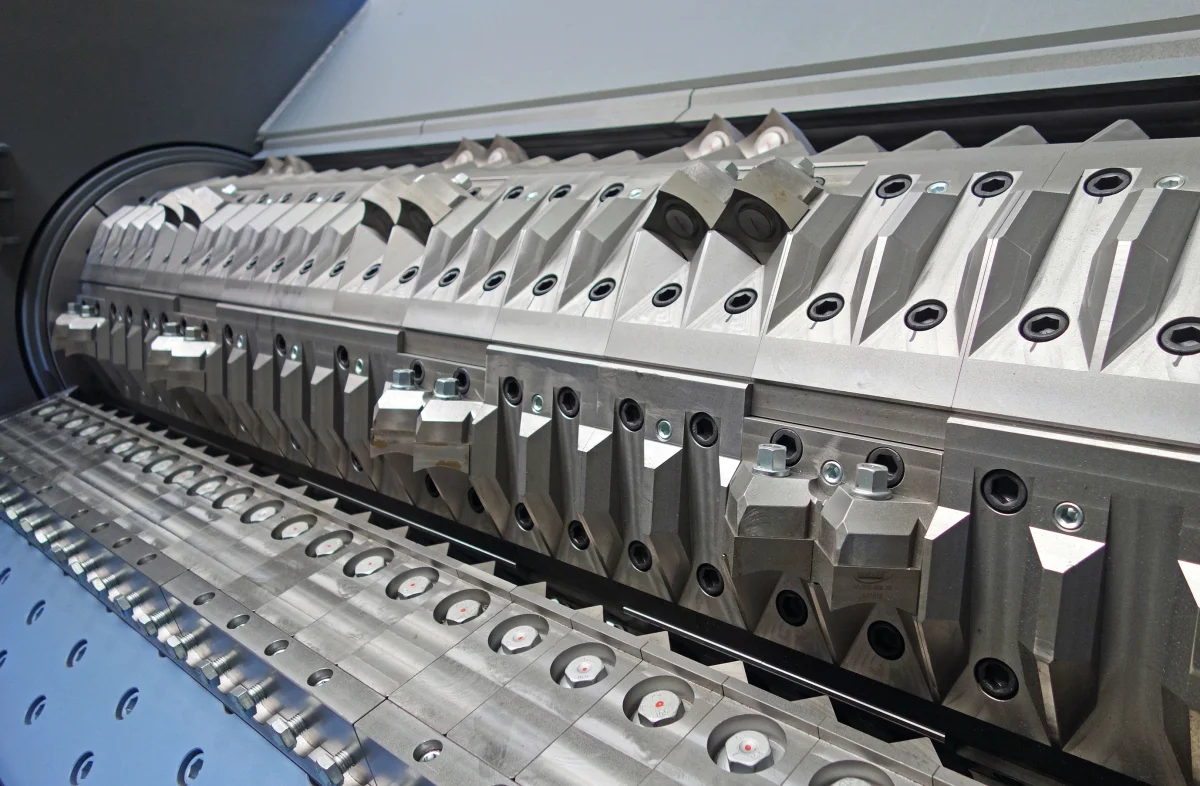

Easy Maintenance: Modular blade design and accessible housing make cleaning and blade replacement straightforward and fast.
Applications of Single Shaft Shredder Machine
-
Plastic Recycling: Efficiently shreds plastic sheets, bottles, and industrial plastic waste for reuse.
-
Wood and Pallet Processing: Ideal for reducing wood waste from production lines or construction debris.
-
Electronic Waste Recycling: Processes circuit boards, e-waste, cables, and small electronic components for material recovery.
-
Rubber and Tire Processing: Suitable for shredding small to medium rubber pieces, reducing waste volume.
-
Scrap Metal Shredding: Capable of handling thin sheet metals, aluminum, and other lightweight metal waste.
-
Material Preparation: Prepares shredded materials for downstream sorting, separation, or compacting.
Technical Parameters of the 1200mm Single Shaft Shredder Machine
| No | Parameter Name | Parameter | Unit | Remark |
|---|---|---|---|---|
| 1 | Overall Dimensions | 2670×2500×2090 | MM | Approximate |
| 2 | Feeding Port Size | 1420×1900 | MM | |
| 3 | Discharge Height | 560 | MM | |
| 4 | Cylinder Stroke | 800 | MM | |
| 6 | Rotor Diameter | 330 | MM | |
| 8 | Rotor Length | 1200 | MM | |
| 9 | Main Shaft Speed | 80 | RPM | |
| 10 | Screen Aperture | 40 | MM | |
| 11 | Moving Blades | 54+26 | PCS | |
| 12 | Fixed Blades | 3+3 | PCS | |
| 13 | Main Motor Power | 55 | KW | |
| 14 | Hydraulic Power | 5.5 | KW | |
| 15 | Hopper Volume | 2030 | L | |
| 16 | Machine Weight | 5550 | KG | Approximate |
Advantages of Choosing a Single Shaft Shredder Machine
-
Space-Efficient Design: Compared with twin-shaft shredders, the single shaft machine occupies less floor space while maintaining high throughput.
-
Versatility: It can handle a variety of materials without extensive adjustments, making it suitable for multi-material recycling operations.
-
Cost-Effective: Lower initial investment and reduced maintenance costs make it an economical solution for small to medium recycling plants.
-
High Safety Standards: Integrated safety devices protect operators and reduce the risk of accidents.
-
Customizable Output: Screen and rotor adjustments allow control over the final shredded size, suitable for different recycling processes.
The single shaft shredder machine is an essential solution for modern recycling and industrial material processing. Its combination of durability, versatility, and high-efficiency shredding makes it ideal for plastics, e-waste, wood, rubber, and scrap metal. By choosing this machine, businesses can improve waste management efficiency, reduce material volume, and prepare materials for downstream processing, all while keeping operational costs low.
