In today’s increasingly sustainability-focused industries, waste management and material recycling have become critical. Among the key pieces of equipment in modern recycling systems is the single-shaft shredder, a highly versatile and efficient machine used to process a wide range of materials such as plastics, wood, textiles, and foam.
At Shanghai Aultral Machinery Co., Ltd., our single shaft shredder is designed with a strong balance of power, precision, and durability. In this blog, we explore the core features, applications, and advantages of this robust machine.
🔧 Technical Overview

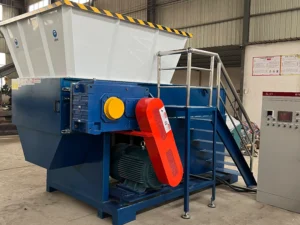

Our industrial single-shaft shredder is engineered for performance and durability. Key specifications include:
-
Rotor Diameter: 485mm (Effective Length: 600mm)
-
Blade Speed: 82 rpm
-
Blade Material: H13 / D2
-
Blade Hardness: HRC60
-
Rotating Blades: 44 pcs
-
Fixed Blades: 2 pcs
-
Chamber Material: Q345B (Wall Thickness: 40mm)
-
Drive Motor: 22 kW
-
Production Capacity: 100–250 kg/hour
-
Control System: PLC (Front and Rear)
-
Cooling System: Air Cooling
-
Protection: Proximity switch, travel switch
-
Hydraulic Pusher Stroke: 600mm
-
Noise Level: ≤75 dB
-
Screen Hole Size: 20mm; Thickness: 10mm
🧩 Typical Applications
The single shaft shredder is suitable for processing a wide variety of waste and recyclable materials, such as:
-
Plastic waste: buckets, films, pipes, PET/HDPE containers
-
Textile and fabric scraps
-
Wood: pallets, trimmings, and furniture waste
-
Foam and rubber materials
-
Paper and cardboard in pre-processing
Its adjustable output size and high torque operation make it ideal for preparing material for granulation, washing lines, or baling.
✅ Advantages of This Model
1. Durability & Strength
The shredding chamber is made of Q345B heavy-duty steel, with a 40mm wall thickness, ensuring minimal deformation under stress. Blades are crafted from H13 or D2 tool steel, hardened to HRC60, which significantly extends their working life.
2. Smart and Safe Operation
With PLC control, automatic pusher, and dual protection systems (travel switch & proximity switch), the shredder operates intelligently and safely, reducing labor and maintenance time.
3. Consistent Output
Equipped with 44 rotating blades and 2 fixed blades, this shredder delivers uniform particle sizes, aided by the 20mm screen, ideal for downstream processing.
4. Energy Efficiency
Powered by a 22kW main motor and a 2.2kW oil pump motor, the system is optimized for energy-saving performance while maintaining strong throughput.
❓ Discussion: Is a Single Shaft Shredder Right for You?
When choosing a shredder, many clients ask:
“Should I choose a single shaft or double shaft shredder?”
Here’s a quick comparison to guide your decision:
| Feature | Single Shaft Shredder | Double Shaft Shredder |
|---|---|---|
| Output size control | ✔ Precise (via screen) | ✘ Less precise |
| Maintenance | ✔ Easier blade replacement | ✘ Complex structure |
| Materials | ✔ Light to medium hardness | ✔ Medium to hard (metal etc.) |
| Speed & Fineness | ✔ Higher precision, slower speed | ✘ Coarse size, higher torque |
If your goal is precise, clean output from plastics, textiles, or wood, the single shaft shredder is often the best choice.
📦 Final Thoughts
Aultral’s single shaft shredder is built with industrial-grade performance in mind. Whether you are managing post-consumer plastics or preparing material for energy recovery, this machine offers a reliable, automated, and efficient solution.
👉 Interested in learning more or requesting a quote?
Contact us today to get machine videos, price lists, or project cases.
