Metal chips and turnings are common by-products of machining, turning, milling, drilling, and other metalworking processes. Although these metal scraps have high recycling value, their loose and irregular shape makes them difficult to store, transport, and melt efficiently. A Metal Chip Briquetting Machine with Conveyor Belt provides an efficient solution by compressing loose metal chips into dense, uniform briquettes.
Designed for metal recycling plants, machining factories, foundries, and scrap metal processing facilities, this system combines automatic material feeding, hydraulic compression, and briquette discharge to improve recycling efficiency and reduce handling costs.
What Is a Metal Chip Briquetting Machine?
A metal chip briquetting machine is a hydraulic press designed to compress loose metal chips and turnings into compact briquettes. Depending on the material and machine configuration, it can process aluminum chips, copper chips, steel chips, cast iron chips, brass chips, and other metal scrap.
Compared with loose metal chips, compressed briquettes have a much higher bulk density. This makes them easier to store, transport, weigh, and feed into melting furnaces.
When equipped with a conveyor belt, the machine can automatically transport metal chips from a collection point or upstream processing machine to the briquetting chamber, reducing manual feeding and improving overall productivity.
How Does the Metal Chip Briquetting System Work?
The working process is simple and efficient:
Metal Chips → Conveyor Feeding → Compression → Briquette Formation → Discharge
First, loose metal chips are collected from machining equipment, scrap containers, or a metal recycling line. The conveyor belt continuously transfers the material to the feeding hopper of the briquette press.
Inside the machine, a powerful hydraulic cylinder applies high pressure to compress the metal chips inside the compression chamber. The material is compacted into a dense briquette with a relatively consistent shape and size.
After compression, the finished briquette is automatically discharged and can then be collected, stored, transported, or sent directly to a furnace for further recycling.
The complete process reduces manual handling and helps create a more organized metal recycling operation.
Suitable Materials
Our metal chip briquetting machines can be configured for different types of metal waste.
Aluminum Chips
Aluminum machining chips are lightweight and usually occupy a large volume. Briquetting significantly reduces their volume, making storage and transportation more convenient. Aluminum briquettes can also be easier to handle during remelting.
Copper Chips
Copper has a high recycling value, making efficient collection and processing especially important. Compressing copper turnings into briquettes helps reduce material loss during handling and improves storage efficiency.
Steel and Cast Iron Chips
Steel chips and cast iron turnings are commonly generated by CNC machining, turning, milling, and drilling. A hydraulic briquetting press can compact these materials into dense blocks for easier transportation and recycling.
Brass and Other Metal Scrap
The system can also be used for brass chips and other suitable metal turnings. The final machine configuration should be selected according to the material type, chip size, moisture content, and required production capacity.
Advantages of a Metal Briquetting Machine with Conveyor Belt
A conveyor-equipped metal briquetting system offers several advantages for industrial recycling operations.
1. Automatic Material Feeding
The conveyor belt transfers metal chips into the briquetting machine automatically, reducing the need for manual loading.
2. Reduced Storage Volume
Loose chips can occupy a significant amount of space. After compression, the material becomes much more compact, allowing more scrap to be stored in the same area.
3. Easier Transportation
Dense metal briquettes are easier to handle using forklifts, pallet trucks, or other material handling equipment. This can reduce transportation and loading difficulties.
4. Improved Recycling Efficiency
Compact briquettes are easier to manage and can be efficiently prepared for melting and further processing.
5. Cleaner Working Environment
Compared with piles of loose chips, compressed briquettes are easier to organize and collect, helping improve workshop housekeeping.
6. Reduced Labor Requirements
The combination of conveyor feeding and hydraulic compression can reduce manual material handling and make continuous operation more practical.

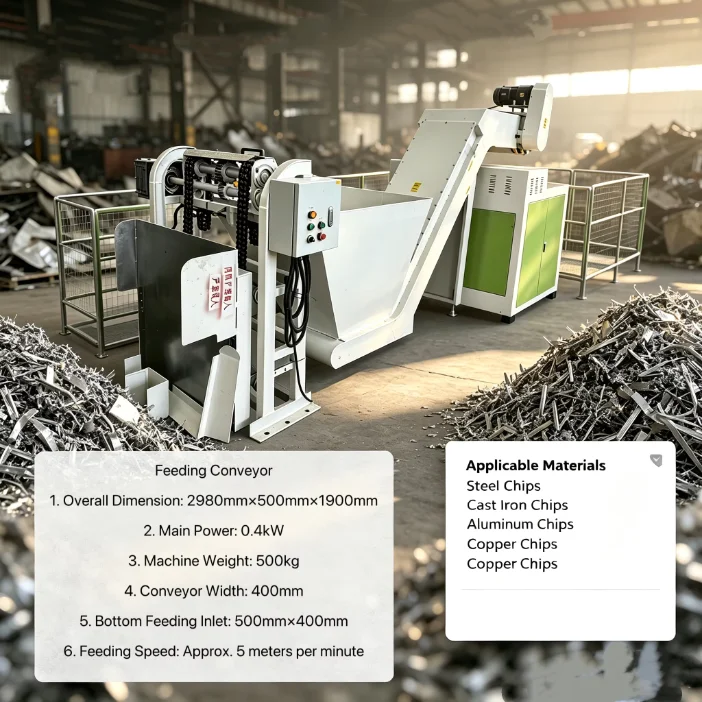

Why Choose a Conveyor Belt Feeding System?
For customers processing a large amount of metal chips every day, manual feeding can become time-consuming and labor-intensive. A conveyor belt provides a continuous feeding solution.
The conveyor length, width, motor power, hopper configuration, and feeding height can be customized according to the customer’s workshop layout and production requirements.
For example, the conveyor can be connected directly to a machining area, chip collection system, crusher, shredder, or other upstream equipment. This makes the metal chip briquetting machine suitable for integration into an automated metal recycling line.
Custom Metal Briquetting Solutions
Different customers have different requirements for metal briquetting. Therefore, machine configuration should be selected according to the actual application.
Important factors include:
- Type of metal chips
- Material density
- Chip size and shape
- Moisture or oil content
- Required production capacity
- Briquette size and weight
- Available installation space
- Power supply
- Automatic or semi-automatic operation
Our engineering team can recommend a suitable hydraulic briquetting solution based on these parameters.
For customers processing 500–1000 kg/h of aluminum waste, for example, the machine configuration can be selected according to the actual material characteristics and required briquette density.
Applications of Metal Chip Briquetting Machines
Metal briquetting machines are widely used in:
- CNC machining factories
- Metalworking workshops
- Automotive parts manufacturing
- Aluminum processing plants
- Copper processing facilities
- Steel machining factories
- Foundries
- Scrap metal recycling plants
- Metal recovery centers
By integrating a conveyor belt, the machine can become part of a complete automated scrap handling and recycling system.
A Metal Chip Briquetting Machine with Conveyor Belt is an efficient solution for converting loose metal chips and turnings into compact, easy-to-handle briquettes. By combining automatic conveyor feeding with powerful hydraulic compression, the system helps reduce storage volume, simplify transportation, decrease manual handling, and improve the overall efficiency of metal recycling.
