Horizontal Hydraulic Baling Press Machine for Cardboard Plastic Bottles Waste Paper

这是测试文本，单击 “编辑” 按钮更改此文本。

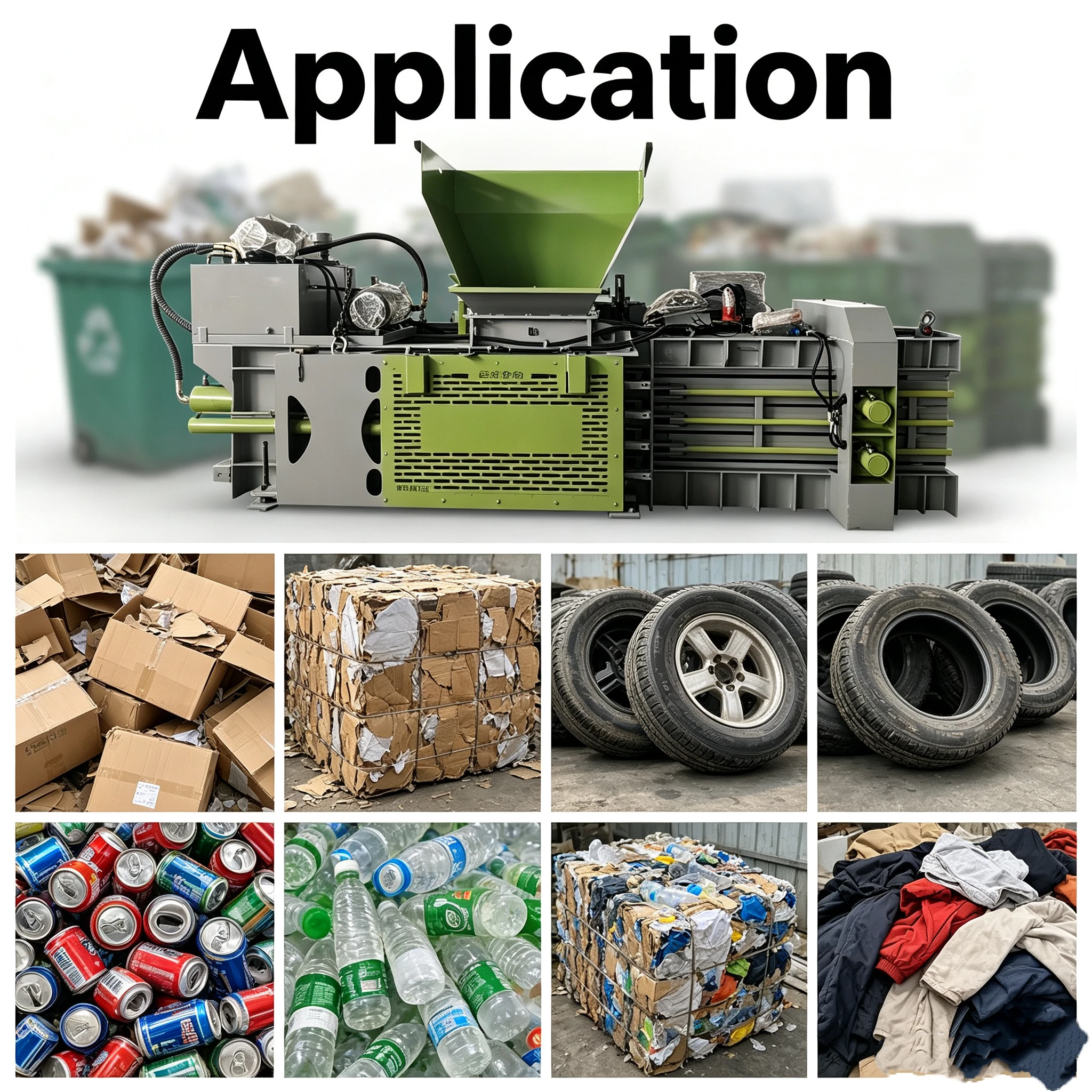

A horizontal hydraulic baler is a type of industrial equipment used to compress large volumes of waste materials into compact, manageable bales. These balers are essential in recycling centers, manufacturing industries, and other sectors where waste management is a priority.

*Hydraulic cylinder controls the size of the bale discharging buckle, stable and safe; freely adjustable baling density; *Integrated operation, saving labour;

*The length of bales can be set freely, and the number of bales can be recorded automatically, which is convenient for verifying the output and costing.

*Simple structure, easy to maintain, firm bundling, convenient for transport and storage;

*Fast and slow speeds are automatically adjusted, effectively increasing production capacity and reducing losses;

*Preset pressure, anti-overload protection; intelligent control, self-checking procedures;

*Independently installed emergency stop button, you can stop the machine at any time;

*High-strength stress beam and frame design, to ensure the stability and durability of machine operation.

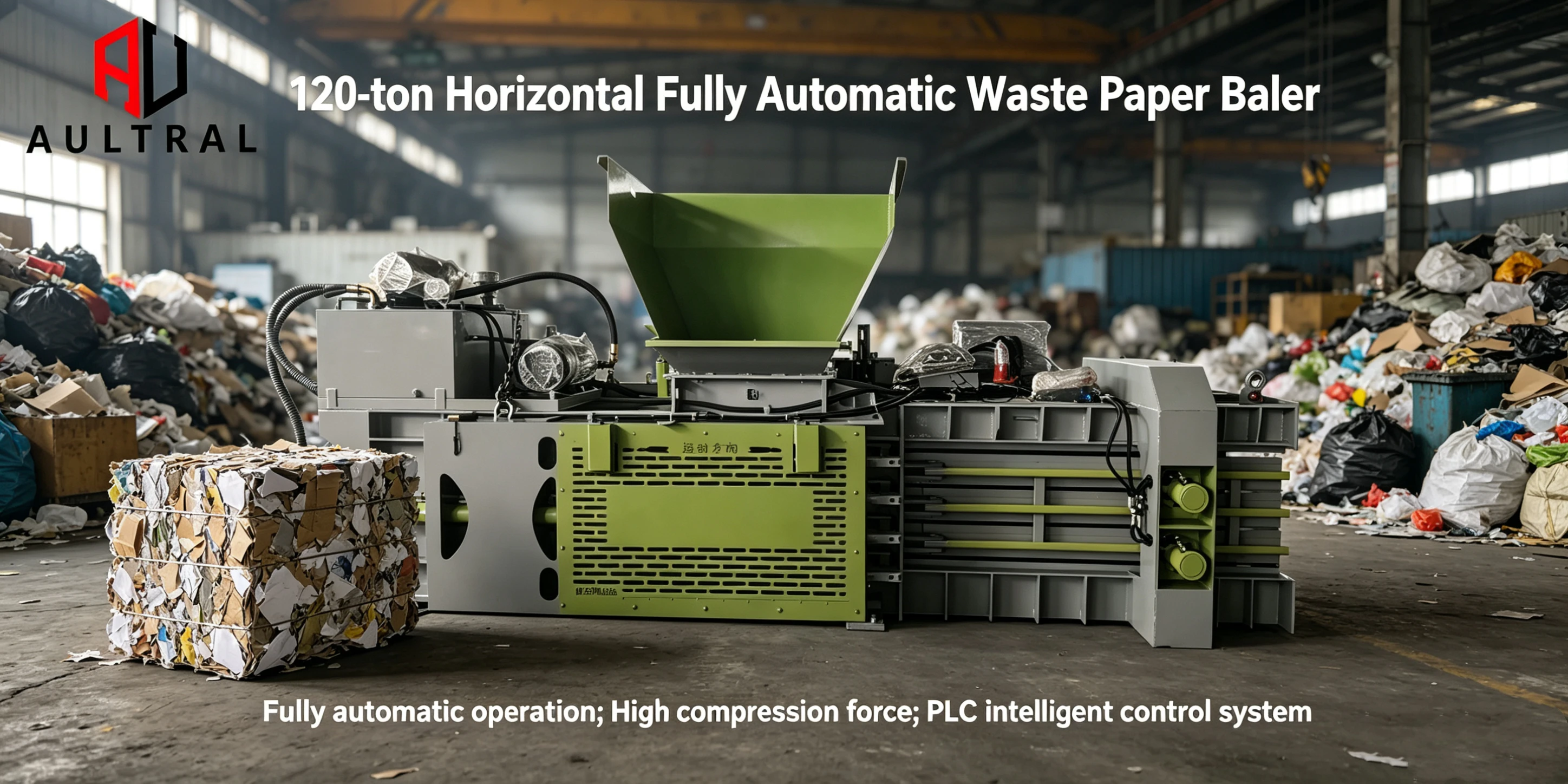

Product Name	120-ton Horizontal Fully Automatic Baler
Feed Opening	1400mm
Chamber Size	Adjustable length × 1100 × 850 mm
Cylinder	230mm
Power	22 kW + 5.5 kW
Oil Pump	Piston pump
Cooling System	250 kW water cooling
Number of Tie Wires	4 Automatic ties
Hydraulic Tank Capacity	800L
Bale Weight	800kg
Overall Dimension	Length 7.5 m × Width 2.3 m × Height 2.6 m
Machine Weight	9 Tons

Key Features

这是测试文本，单击 “编辑” 按钮更改此文本。

Technical Specifications

Case Study

We believe the projects that we have executed speak for themselves. AULTRAL has engineered and provided 6 AG mills of Ø12.2m×11m (28000kW gearless drive) and 6 overflow discharge ball mills of Ø7.9×13.6m (2×9000kW gear drive) for Sino Iron Project in Australia. For Zijin Mining’s Duobaoshan Copper Mine project in Heilongjiang, we have manufactured and provided SAG mills of Ø11×6.4m (2×9000kW) and overflow discharge ball mills of Ø7.9×13.6m (2×9000kW) which have been well operating currently.

Full-process Solution for Mineral Grinding

Why Choose AULTRAL's Grinding Mills

High cost-effectiveness
AULTRAL grinding mills are recognized as China’s Manufacturing Industry Single Champion Product. AULTRAL is responsible for setting the national standards of semi-autogenous mills (SAG mills) and ball mils, supported by powerful database, optimized process technology, cutting-edge design concept, and 60 years of experience in developing and nurturing innovative technology.
High operating rate
The long life cycle of our products is based on the adoption of international standards, high-quality materials, state-of-the-art processing techniques.
Low-carbon & environmental-friendly processes
Intelligent control technology coupled with long-life wear-resistant materials results in low-carbon and eco-friendly operations.
High-efficiency service
Our service network is distributed all over the world, and our service team of seasoned professionals is reliable and willing to assist along the way. We are able to deliver quick response to customer needs and provide full life cycle support via online monitoring and diagnosing, product upgrading and continuous process improvement.
